IHF FLUOROPOLYMER-LINED CHEMICAL CENTRIFUGAL PUMPS
DESCRIPTION
IHF series are single-stage single-suction fluoropolymer-lined
chemical centrifugal pumps. The pump casing is made of ductile cast
iron shell lined with FEP (F46), the casing cover, impeller and
shaft sleeve are all made of fluoropolymer with metal core using
cold pressing sintering molding, and the inlet and outlet are
reinforced with cast iron shell. The shaft seal adopts the current
high technical of the external type PTFE corrugated pipe mechanical
seal, with multi-layer of protection, prolonging the service life
of the seal. For the transportation of solid-laden medium, can be
equipped without cooling water two single-ends (silicon carbide to
silicon carbide) mechanical seal, so customers need to consider the
solid content in the medium when choosing models.
FEATURES
1. IHF series centrifugal pump is designed according to
international standards, and the pump casing is metal shell lined
with FEP (F46);
2. The casing cover, impeller and shaft sleeve are all made of FEP
with metal core using cold pressing sintering molding, and the
shaft seal adopts external Corrugated pipe mechanical seal;
3. The stator is made of 99.9% alumina ceramic or silicon nitride;
4. The rotor adopts PTFE filler. It is corrosion resistant,
wear-resistant, and good seal performance.
5. The superiors are advanced technology, reasonable structure,
strong corrosion resistance, tight and reliable sealing
performance, stable work performance, and long service life.
APPLICATIONS
It is suitable for transporting any concentration of sulfuric acid,
hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid,
aqua regia, strong alkali, strong oxidant, organic solvent,
reducing agent and other highly corrosive media under harsh
conditions.

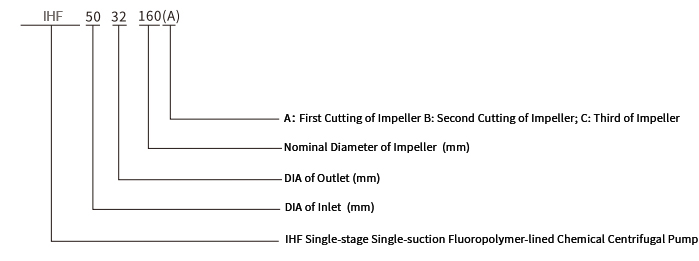

Model Coding
PARAMETERS
| NAME | TYPE | FLOW | HEAD | OPERATING TEMPERATURE | POWER OF MOTOR | SPEED | DIA OF FLANGE | OPERATING PRESSURE |
| IHF | IHF | 3-400m3/h | 15-125m | -20~150℃ | 0.75～110kw | 2900/1450 r/min | 32～200mm | 1.6Mpa |
MODELS
| MODEL | SPEED=2900r/min | DENSITY1000kg/m3 | | SPEED=1450r/min | DENSITY=1000kg/m3 |
| FLOW (m3/h) | HEAD (m) | POWER (kw) | NPSH (m) | EFFICIENCY (%) | FLOW (m3/h) | HEAD (m) | POWER (kw) | NPSH(m) | EFFICIENCY (%) |
| IHF32-25-125 | 2.0
3.2
4.0 | 20.6
20
18 | 1.1 | 2.0 | 37 | | | | | |
|
|
| IHF32-25-160 | 2.0
3.2
4.0 | 33
32
30 | 1.5 | 2.0 | 35 | | | | | |
|
|
| IHF40-25-125 | 4
6
8 | 23
20
18.5 | 1.5 | 2.0 | 40 | 2
3
4 | 5.5
5
4.5 | 0.55 | 2.0 | 34 |
| IHF40-25-160 | 4
6
8 | 34
32
28 | 2.2 | 2.0 | 33 | 2
3
4 | 9
8
7 | 0.55 | 2.0 | 27 |
| IHF40-25-200 | 4
6
8 | 52
50
48 | 4 | 2.0 | 26 | 2
3
4 | 13.5
12.5
12 | 0.75 | 2.0 | 20 |
|
|
| IHF50-32-125 | 10
12.5
15 | 23
20
18.5 | 2.2 | 3.0 | 51 | 5
6.3
8 | 5.5
5
4.5 | 0.55 | 3.0 | 45 |
|
|
| IHF50-32-160 | 10
12.5
15 | 34
32
28 | 4 | 3.0 | 46 | 5
6.3
8 | 9
8
7 | 0.55 | 3.0 | 40 |
|
|
| IHF50-32-200 | 10
12.5
15 | 52
50
48 | 7.5 | 3.0 | 39 | 5
6.3
8 | 13.5
12.5
12 | 1.1 | 3.0 | 33 |
|
|
| IHF50-32-250 | 10
12.5
15 | 82
80
78 | 11 | 3.5 | 38 | 5
6.3
8 | 20.5
20
19.5 | 1.5 | 3.5 | 32 |
|
|
| IHF65-50-125 | 15
25
30 | 23
20
18.5 | 3 | 3.5 | 62 | 7.5
12.5
15 | 5.5
5
4.5 | 0.55 | 3.5 | 55 |
|
|
| IHF65-50-160 | 15
25
30 | 34
32
28 | 5.5 | 3.5 | 57 | 7.5
12.5
15 | 9
8
7 | 1.1 | 3.5 | 51 |
|
|
| IHF65-40-200 | 15
25
30 | 52
50
48 | 11 | 3.5 | 52 | 7.5
12.5
15 | 13.5
12.5
12 | 1.5 | 3.5 | 46 |
|
|
| IHF65-40-250 | 15
25
30 | 82
80
78 | 18.5 | 3.5 | 50 | 7.5
12.5
15 | 20.5
20
19.5 | 3 | 3.5 | 43 |
|
|
| IHF80-65-125 | 40
50
60 | 23
20
18.5 | 5.5 | 4.0 | 69 | 15
25
30 | 5.5
5
4.5 | 1.1 | 4.0 | 64 |
|
|
| IHF80-65-160 | 40
50
60 | 34
32
28 | 11 | 4.0 | 67 | 15
25
30 | 9
8
7 | 1.5 | 4.0 | 62 |
|
|
| MODEL | SPEED=2900r/min | DENSITY=1000kg/m3 | | SPEED=1450r/min | DENSITY=1000kg/m3 |
| FLOW (m3/h) | HEAD (m) | POWER (kw) | NPSH (m) | EFFICIENCY (%) | FLOW (m3/h) | HEAD (m) | POWER (kw) | NPSH (m) | EFFICIENCY (%) |
| IHF80-50-200 | 40
50
60 | 52
50
48 | 15 | 4.0 | 63 | 15
25
30 | 13.5
12.5
12 | 2.2 | 4.0 | 57 |
|
|
| IHF80-50-250 | 40
50
60 | 82
80
78 | 30 | 4.0 | 56 | 15
25
30 | 20.5
20
19.5 | 5.5 | 4.0 | 51 |
|
|
| IHF100-80-125 | 80
100
120 | 22
20
18.5 | 11 | 4.5 | 77 | 40
50
60 | 5.5
5
4.5 | 1.5 | 4.5 | 74 |
|
|
| IHF100-80-160 | 80
100
120 | 34
32
28 | 15 | 4.5 | 73 | 40
50
60 | 9
8
7 | 2.2 | 4.5 | 69 |
|
|
| IHF100-65-200 | 80
100
120 | 52
50
48 | 30 | 4.5 | 73 | 40
50
60 | 13.5
12.5
12 | 5.5 | 4.5 | 68 |
|
|
| IHF100-65-250 | 80
100
120 | 82
80
78 | 45 | 4.5 | 71 | 40
50
60 | 20.5
20
19.5 | 7.5 | 4.5 | 64 |
|
|
| IHF125-100-160 | 120
160
180 | 34
32
28 | 30 | 5.0 | 70 | 80
100
120 | 9
8
7 | 5.5 | 5.0 | 70 |
|
|
| IHF125-100-200 | 240
200
150 | 52
50
48 | 55 | 5.0 | 65 | 80
100
120 | 13.5
12.5
12 | 11 | 5.0 | 71 |
|
|
| IHF150-125-250 | | | | | | 240
200
150 | 20.5
20
19.5 | 22 | 6.0 | 11 |
|
|
| IHF150-125-315 | | | | | | 240
200
150 | 34
32
30 | 45 | 6.0 | 75 |
|
|
| IHF150-125-400 | | | | | | 240
200
150 | 52
50
48 | 55 | 6.0 | 78 |
|
|
| IHF200-150-250 | | | | | | 250
400
480 | 20.5
20
19.5 | 45 | 7.0 | 74 |
|
|
| IHF200-150-315 | | | | | | 250
400
480 | 34
32
30 | 75 | 7.0 | 79 |
|
|
| IHF200-150-400 | | | | | | 250
400
480 | 52
50
48 | 90 | 7.0 | 78 |
|
|
